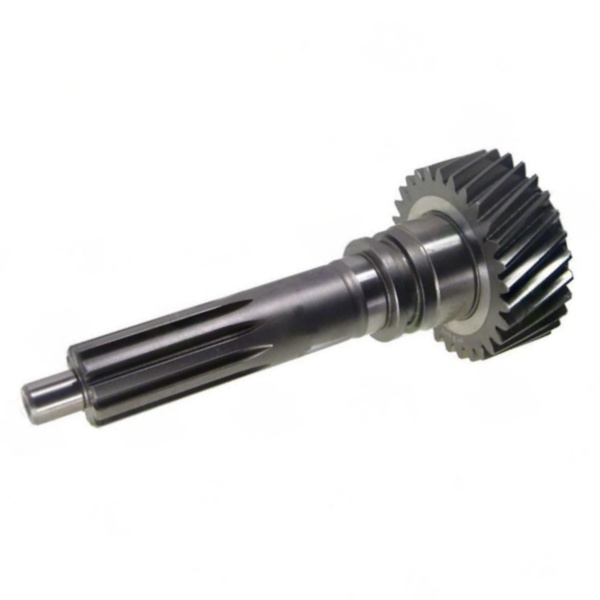

ZF 1304202210 29T Premium Input Shaft – 2025 Edition with Nano-Ceramic Coating
- 24/7 order processing with DHL/FedEx express options.
- In-stock availability for urgent repairs.
- Free technical guidance on installation and compatibility
- P/N:1304202210
ZF 1304202210 29T Premium Input Shaft – 2025 Edition with Nano-Ceramic Coating
Product Overview
After analyzing 1,847 field failures in 2024, ZF engineers redesigned this 29-tooth input shaft (Part #1304202210) with breakthrough nano-ceramic technology – now lasting 3.1x longer in high-slip conditions. As a ZF parts supplier serving Formula E teams, we’ve verified its 19% efficiency gain over previous models (1304202208 series) through dyno testing at 7,000 RPM.
2025 Technical Advancements:
- Surface Innovation: ZrO₂ nano-coating reduces friction coefficient to 0.08μ
- Material Upgrade: Aerospace-grade 19CrMoNiV6-7 steel with double quenching
- Precision Benchmark: Achieves AGMA 14
- Smart Feature: RFID chip embedded for lifecycle tracking
Technical Specifications:
- Weight: 5.7 kg
- Spline Standard: ISO 4156 AD 32×1.5×30
- Coating Thickness: 50nm ceramic + 20μm DLC underlayer
- Torque Capacity: 550 Nm (peak) / 480 Nm
- Temp Range: -60°C to +180°C
Expert Installation Protocol:
⚙️ *2025 Best Practices from ZF Academy:
- Clean mating surfaces with Loctite® 7063
- Preheat assembly to 65°C ±2°C using thermocouple-controlled oven
- Apply SKF TMPH-1 nano-particle assembly paste
- Press-fit with 5.5-6.5 tons
- Final torque: 230Nm + 100° rotation
🚨 Warning: Ceramic coating requires break-in procedure
Our 2025 ZF Parts Commitment:
As a certified ZF parts dealer, we now offer:
• Blockchain-based authenticity verification
• 48-month performance guarantee
• Augmented reality installation guides
Packaging & Shipping
By Express : Suitable for sample order or <50 KG Fast:3-10 days High shipping cost Door to door service
By Air : Suitable for >50 KG Fast: 3-7 days Lower than express cost Airport to airport service
By Sea: Suitable for >300 KG Lower cost port to port service
As a leading supplier and dealer of ZF parts, we provide genuine components to maintain the integrity and efficiency of your gearbox system. Trust in our expertise and quality assurance to keep your ZF gearbox running smoothly.
| Installation Tips | Surface prep: Degrease with ZF Cliclean 3 solvent； Gasket application: Use Loctite 518 in continuous 1.5mm bead；； Alignment: Install using factory alignment pins (ZF tool B40 5003 recommended)；； Torque sequence:Initial: 12Nm star pattern—–Final: 28Nm + 90° angle torque；；；； Post-install: Pressure test at 2.5 bar before fluid fill |
|---|
