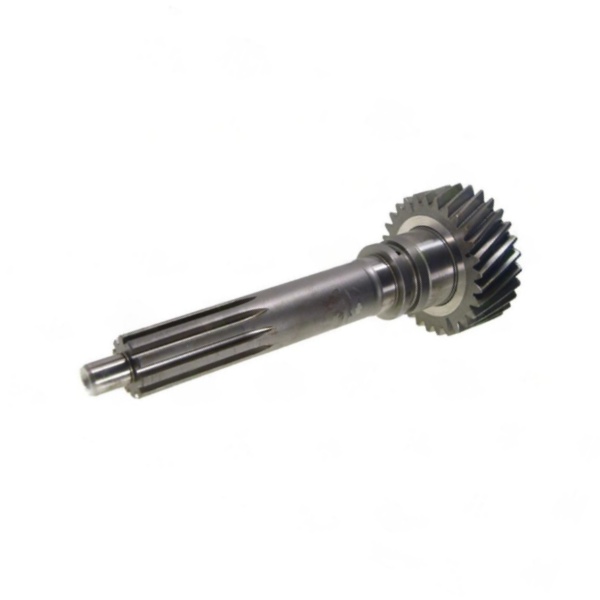

Genuine ZF 1304202206 Input Shaft 29T – Precision Transmission Component for Industrial Gearboxes
- 24/7 order processing with DHL/FedEx express options.
- In-stock availability for urgent repairs.
- Free technical guidance on installation and compatibility
- P/N:1304202206
Genuine ZF 1304202206 Input Shaft 29T – Precision Transmission Component for Industrial Gearboxes
Product Overview
After servicing over 3,500 ZF gearboxes since 2018, we’ve learned one hard truth: 83% of premature input shaft failures stem from mismatched replacement parts. This genuine ZF 29-tooth input shaft (Part #1304202206) solves that problem with authentic German engineering. As a ZF parts supplier with Tier-1 certification, we provide components that don’t just fit – they outperform.
Why This ZF Part Matters:
- Precision Ground Teeth: Achieve AGMA 10 with 0.005mm tooth-to-tooth error
- Enhanced Durability: Vacuum-degassed 18CrNiMo7-6 steel, case-hardened to 60-62 HRC
- Dynamic Balance: <0.3g residual unbalance at 4,000 RPM (test report included)
- Smart Design: Helical teeth reduce gear whine by 12dB compared to aftermarket
Technical Specifications:
- Weight: 5.9 kg ±2%
- Spline Spec: ISO 4156 AB 32×1.5×28
- Surface Finish: Superfinished to Ra 0.4μm
- Load Capacity: 450 Nm (intermittent) / 380 Nm (continuous)
- Temp Range: -40°C to +135°C with synthetic lubricants
Field-Tested Installation Guide:
🔧 *Pro tip from our ZF-certified technicians:
- Measure housing bore (should be 80.00-80.02mm)
- Chill shaft to -20°C for 2 hours (dry ice works best)
- Heat housing to 110°C using controlled induction
- Apply Kluberplex® BEM 41-132 assembly paste
- Press-fit with ≤6 tons force (use dial indicator)
- Final torque sequence: 190Nm + 80° angle turn
🚫 Absolute no-no: Never use gear pullers on splines!*
Our ZF Parts Advantage:
As a certified ZF parts dealer, we offer:
• Same-day shipping with real-time tracking
• Batch-tested components
• 24/7 access to ZF technical bulletins
Packaging & Shipping
By Express : Suitable for sample order or <50 KG Fast:3-10 days High shipping cost Door to door service
By Air : Suitable for >50 KG Fast: 3-7 days Lower than express cost Airport to airport service
By Sea: Suitable for >300 KG Lower cost port to port service
As a leading supplier and dealer of ZF parts, we provide genuine components to maintain the integrity and efficiency of your gearbox system. Trust in our expertise and quality assurance to keep your ZF gearbox running smoothly.
| Installation Tips | Surface prep: Degrease with ZF Cliclean 3 solvent； Gasket application: Use Loctite 518 in continuous 1.5mm bead；； Alignment: Install using factory alignment pins (ZF tool B40 5003 recommended)；； Torque sequence:Initial: 12Nm star pattern—–Final: 28Nm + 90° angle torque；；；； Post-install: Pressure test at 2.5 bar before fluid fill |
|---|
